| 원래 장소: | 강소, 중국 (본토) |
| 브랜드 이름: | Jkongmotor |
| 인증: | CE, ROHS,ISO9001 |

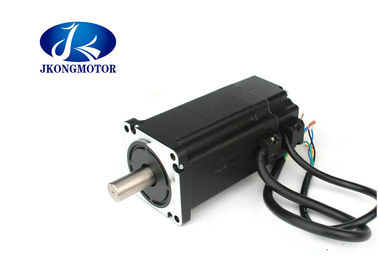

| 모델 번호: | JK60BLS01 |
| 최소 주문 수량: | 3-10PCS |
|---|---|
| 가격: | US $16-25.5 / Units | 3 Unit/Units (Min. Order) |
| 포장 세부 사항: | 수출 판지로. 깔판을 가진 큰 양 |
| 배달 시간: | 표본을 위해, 배치, 15-25days를 위한 7-15 일/ |
| 지불 조건: | , 서부 동맹 paypal, T/T L/C |
| 단계: | 3, 3 단계 | 유형: | 잡종 |
|---|---|---|---|
| 단계 각 (정도): | 1.8 도 | 토크를 보전되기: | 0.3N.m |
| 현재/단계: | 2.8A | 모터 길이: | 78mm |
| 전압 범위: | 48V | 적당한 모터: | nema 24 댄서 모터 |
| MOQ: | 10개 | ||
| 강조하다: | bldc motor,micro brushless dc motor |
||
Genaral Specification:
| Item | Specification |
| Winding type | Star |
| Hall effect angle | 120 degree electrical angle |
| Shaft run out | 0.025mm |
| Radial play | 0.02mm＠450g |
| End play | 0.08mm＠450g |
| Max.radial force | 115N ＠20mm form the flange |
| Max.axial force | 45N |
| Insulation class | Class B |
| Dielectric strength | 500VDC for one minute |
| Insulation resistance | 100MΩ Min.,500VDC |
Electrical Specification:
| Model | |||||
| Specification | Unit | JK60BLS01 | JK60BLS02 | JK60BLS03 | JK60BLS04 |
| Number Of Phase | Phase | 3 | |||
| Number Of Poles | Poles | 8 | |||
| Rated Voltage | VDC | 48 | |||
| Rated Speed | Rpm | 3000 | |||
| Rated Torque | N.m | 0.3 | 0.6 | 0.9 | 1.2 |
| Rated Current | Amps | 2.8 | 5.2 | 7.5 | 9.5 |
| Rated Power | W | 94 | 188 | 283 | 377 |
| Peak Torque | N.m | 0.9 | 1.8 | 2.7 | 3.6 |
| Peak Current | Amps | 8.4 | 15.6 | 22.5 | 28.5 |
| Back E.M.F | V/Krpm | 12.1 | 12.6 | 12.4 | 13.3 |
| Torque Constant | N.m/A | 0.116 | 0.12 | 0.118 | 0.127 |
| Rotor Inertia | Kg.cm^2 | 0.24 | 0.48 | 0.72 | 0.96 |
| Body Length | mm | 78 | 99 | 120 | 141 |
| Weight | Kg | 0.85 | 1.25 | 1.65 | 2.05 |
| Sensor | Honeywell | ||||
| Insulation Class | B | ||||
| Degree of Protection | IP30 | ||||
| Storage Temperature | -25～+70℃ | ||||
| Operating Temperature | -15～+50℃ | ||||
| Working Humidity | 85% or under 85% RH(non condensing) | ||||
| Working Environment | outdoor(no direct sunlight),Non-corrosive Gas, Non-inflammable gas, No oil fog, No dust |
||||
| Altitude | 1000m or under 1000m | ||||
Products of special request can be made according to the customer request !
Further More Information
Q1: What about your warranty?
A: We guarantee is one year . for sea order . is 15months.
Q2: Do you have any certificates?
A: Yes, we have. All the motors have been approved by CE and Rohs.
Q3: Do you offer OEM AND ODM service?
A: Yes. We can supply OEM andmake customized design for any specific application.
Q4: How can be your brand distributor?
A: We will check your capacity and help you promote and expand the market.
Q5: What's the delivery time ?
A: Except special order. For samples usually 10-14 working days . for batch order . usually 20-25days.
